Refrigerant Flow Meter Pulse Output: High-Speed K-Factor Tuning for Automated Batching
Quick Answer: For automated batching of refrigerants like R134a, R410A, or R32, a flow meter with a fast pulse output and a precisely tuned K-factor is not optional. It is the only way to achieve fill accuracy below ±0.5% at fill times under 3 seconds. Silver Automation Instruments supplies oval gear and Coriolis meters with pulse resolutions up to 61,000 pulses per litre, pre-configured for your exact refrigerant density and batching speed.
Why Pulse Output Matters More Than You Think
Most engineers focus on accuracy specs first. That makes sense. But in high-speed batching, accuracy without speed is useless. Your PLC or batch controller needs a pulse train that is dense enough to catch every gram of refrigerant. If the pulse resolution is too low, the controller will miss a few pulses at the end of a fill. The result is a dosing error that repeats on every cycle.
We have seen this on customer sites many times. A refrigeration equipment maker in Thailand switched from a turbine meter with 200 pulses per litre to a Coriolis meter with 20,000 pulses per litre. Their batching repeatability improved from ±15 grams to ±2 grams on a 500 g charge. The only change was the meter and its K-factor setup.
K-Factor Tuning Is Not a One-Time Setting
A K-factor is the number of pulses your flow meter sends out per unit of volume or mass. The factory gives you a default value. In practice, that number must be tweaked for your actual refrigerant, your operating pressure, and your fill temperature. R410A behaves differently at 10 bar and 30 °C than it does at 18 bar and 45 °C. The density shifts. Your meter does not know this unless you tell it.
With a high-speed oval gear meter or a micro-motion Coriolis meter, you can perform a multi-point K-factor linearization. This means the meter or the flow transmitter applies different K-factor values at different flow rates. For example, at 0.2 L/min you might use 18,500 pulses/L. At 2 L/min you might use 18,380 pulses/L. The curve is unique to your refrigerant line. We pre-program this curve for many customers before shipment. Just send us your pressure (bar), temperature (°C), and expected flow range.
Oval Gear vs. Coriolis for Refrigerant Batching
Both technologies work. The choice depends on your budget and the refrigerant viscosity. R32 and R290 have very low viscosity, under 0.15 cP at line conditions. Oval gear meters can handle this if clearances are tight and the meter is built for low-viscosity fluids. Silver Instruments oval gear meters for refrigerant use PPS rotors and hard-coated aluminum housings. They deliver 5,000 to 61,000 pulses/L depending on the size, from DN4 to DN25.
Coriolis mass flow meters give you a direct mass reading. You do not need to compensate for density changes because the meter measures mass flow directly. This is a big advantage when batching blends like R448A or R449A where density varies with temperature more than a pure refrigerant. Our mini Coriolis meter for small lines, the SI-MF series, outputs mass pulses at rates up to 10 kHz. It also reports density and temperature over Modbus RTU while pulsing, so your control system can log every batch.
A Real Batching Scenario from a Latin American Customer
Last year a customer in Mexico asked us to improve their automated can-filling line for R134a. They were using a nozzle injector with a solenoid valve and a low-resolution turbine meter. Fill target was 340 g per can. Cycle time had to be under 2.5 seconds. Their average error was +12 g, which was costing them around $18,000 USD per year in overfill.
We replaced the turbine meter with an oval gear meter, DN10 size, pulse output of 45,000 pulses per litre. We tuned the K-factor at three flow points: valve open peak flow at 3.2 L/min, mid-flow at 1.5 L/min, and cut-off trickle at 0.3 L/min. The batch controller was configured to stop on a preset pulse count. After tuning, the average fill was 340.2 g with a standard deviation of 1.1 g. The customer recovered the meter cost in four months through reduced overfill.
Pulse Output Configuration for Common Controllers
Most batch controllers from brands like OMEGA, Precision Digital, or Siemens accept a 24 VDC NPN or PNP pulse. Our meters come with a NAMUR or open-collector output as standard. You can specify the pulse type when ordering. The wiring is two-wire or three-wire, and the signal cable can run up to 50 metres witho

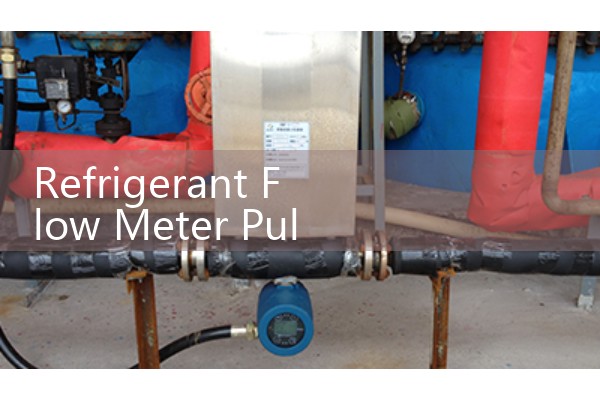

_600x400.jpg)
If your controller supports frequency input up to 10 kHz, you can use the highest pulse resolution available. For very short batches under 1 second, a 10 kHz pulse rate is the minimum we recommend. Some of our oval gear meters can pulse at 20 kHz peak. At that speed, a batch of 50 grams can still contain 400 pulses. That gives you enough granularity to stop accurately without shocking the valve.
Specific Models and Sizes for Refrigerant Batching
We stock and configure several flow meter models specifically for refrigerants. The SI-OG-RF series is an oval gear flow meter with PTFE sealing, suitable for R134a, R1234yf, R513A, and similar medium-pressure refrigerants. Sizes range from DN4 (1/8 in) to DN25 (1 in). Maximum working pressure is 40 bar. Pulse output options include 2-wire NAMUR, 3-wire NPN, and push-pull. For higher pressures up to 100 bar, such as R744 (CO₂) in transcritical systems, we recommend a micro Coriolis meter with a 316L stainless steel tube and 4-20 mA HART plus pulse output.
All meters leave our factory with a calibration certificate traceable to NIST or CNAS. The certificate includes the K-factor curve and the linearity error plot. We can also supply meters with ATEX Zone 1 certification if your batching area has a gas classification. Just mention the zone requirement when you send your inquiry.
How to Order the Right Meter for Your Refrigerant
Here is the thing. Most online price lists do not help you because a refrigerant flow meter must be configured, not just picked from a catalog. To get a firm quote, send us these four parameters: refrigerant type, batching fill weight or volume, desired fill time in seconds, and pipe connection size. We will calculate the required pulse resolution, check the pressure drop, and propose one or two meter options with pricing.
You can reach us at [email protected]. For urgent requests, call +86-135-1213-1526 or message us on WhatsApp at 86-135-12131526. WeChat users can add +86 13512131526. Typical lead time for a configured refrigerant meter is 5 to 7 working days. Express shipping to Southeast Asia, Oceania, Middle East, Africa, and Latin America takes 5 to 8 days.
FAQ: Refrigerant Flow Meter Pulse Output
1. What is the minimum pulse resolution needed for batching 100 g of R290?
For a 100 g fill, you want at least 800 pulses to achieve better than ±0.5% repeatability. With R290 density around 0.49 g/mL at 20 °C, 100 g equals about 204 mL. A meter with 4,000 pulses/L gives you 816 pulses per batch. That is sufficient. We recommend at least 4,000 pulses/L for small propane or propylene batching.
2. Can I use a turbine meter with pulse output for high-speed refrigerant batching?
Turbine meters struggle at the very low flow rates seen during the final cut-off phase. The rotor can stall or overspin, causing missed pulses or false pulses. Oval gear and Coriolis meters have a much wider turndown ratio, typically 100:1 or better, and pulse output remains precise even at trickle flow.
3. How do I tune the K-factor for a refrigerant blend?
Run the meter at three stable flow rates spanning your batching profile. Collect and weigh the actual refrigerant passed at each flow rate. Calculate the actual pulses per kilogram and load these into your batch controller or flow transmitter. For blends, temperature variations can shift density by 2-3%. A Coriolis meter removes this variable entirely.
4. Do Silver Instruments meters need a separate flow transmitter for pulse output?
Our oval gear meters include an integral pickup coil and signal conditioner. The output is a clean square wave directly compatible with PLC or batch controller inputs. No external transmitter is needed. Our Coriolis meters have a built-in transmitter that provides pulse, 4-20 mA, and RS485 simultaneously.
5. What happens to pulse output at zero flow after a batch stops?
The pulse output goes to a steady high or low state, depending on whether you select NPN (sinking) or PNP (sourcing). There is no drift pulse. The meter does not send phantom pulses when the refrigerant line is static. This is critical for batch integrity. Wire the meter signal to a high-speed counter input on your PLC for best results.
