Endress+Hauser Flow Meter Calibration PDF Library: Factory and On-Site Verification Procedures
Quick Answer: Endress+Hauser offers a calibration PDF library that covers factory procedures and onsite verification for many flow meter types. Silver Automation Instruments also supplies factory calibration certificates with each Coriolis, magnetic, ultrasonic, vortex, oval gear, and thermal mass flow meter. Send us your fluid, flow range, pressure, temperature, and pipe size to get a specific calibration document before shipment.
Why a Calibration PDF Is a Project Document, Not a Sales Brochure
Endress+Hauser flow meter calibration PDF library has a clear purpose. It gives maintenance engineers a traceable record of test points, error limits, and output values. A PDF alone will not fix a meter that has shifted after installation. But it is a baseline for commissioning and troubleshooting.
In practice, a calibration certificate without a matching serial number is not useful. We see this problem on export shipments. The certificate must match the meter tag, the order number, and the customer specification. If these do not match, the document fails inspection.
Factory Calibration Procedures for Different Flow Meter Types
For a Coriolis mass flow meter, the factory test records mass flow error, density error, and temperature. We calibrate from low flow to high flow. For a chemical plant in Indonesia, Silver Instruments supplied a DN25 Coriolis meter. The certificate listed 0.15 percent mass flow error at 200 kg/h and 2000 kg/h. The test medium was water. The process fluid was a solvent at 3 cP. We also checked the 4-20 mA HART output. The meter is now used for reactor batching.

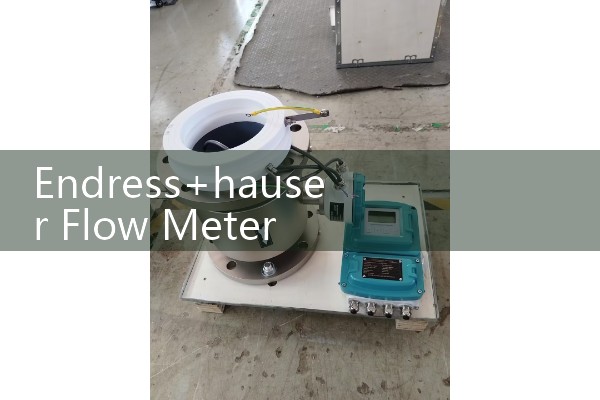

For magnetic flow meters, the calibration rig records flow velocity in m/s. The meter output stays linear across 0.3 to 10 m/s. A water utility in the Philippines needed a DN150 electromagnetic meter. The factory certificate showed 0.2 percent error at 30 m3/h, 75 m3/h, and 150 m3/h. The customer used the PDF for the local water authority permit.
For vortex flow meters, we test with air or water and calculate the K-factor. A gas distributor in Mexico ordered a DN80 vortex meter for compressed air. The certificate listed pulses per m3 at 50, 100, and 150 m3/h. This made the onsite scaling work much faster.
For oval gear meters, we test with diesel or calibration oil. A paint manufacturer in Southeast Asia ordered oval gear meters for solvent batching. Viscosity was 5 cP. The calibration sheet showed repeatability of 0.05 percent. The user then matched the pulse output to the batch controller.
For thermal mass flow meters, we test with air and verify flow range in normal cubic meters per hour. A food plant in Australia ordered a thermal mass meter for compressed air and nitrogen. The certificate listed accuracy at 20, 50, and 100 Nm3/h.
Onsite Verification Procedures You Can Run Without a Full Laboratory
Onsite verification is not a full recalibration. It is a health check. Most engineers skip this part until a batching error appears. Here is the thing. A meter can pass the factory test but still fail in the field because of wrong installation, air bubbles, or electrical noise.
Start with a zero check. For a magnetic flow meter, fill the pipe with liquid and stop flow. The display should read zero within the error band. For a Coriolis meter, run the zero verification routine from the transmitter menu. Do this with the sensor full of the process fluid and no flow.
Compare the loop value. Read the local display and then read the 4 to 20 mA signal in the control system. A mismatch over 0.5 percent often means a wiring or scaling problem. Check the HART variables if you have a HART communicator.
Use a reference device. For clean water, a clamp-on ultrasonic meter works as a temporary reference. For air, a portable thermal mass meter works. For diesel, a calibrated con
Check the sensor conditions. For magnetic meters, inspect the liner and grounding. For vortex meters, check the bluff body for coating. For Coriolis meters, check the tubes for stress or corrosion. A small buildup changes the reading even if the electronics are fine.
How Silver Instruments Builds Calibration Documents for Export Projects
We have seen this on customer sites many times. A meter arrives without a matching serial number on the certificate. The customer cannot clear customs or complete the project inspection. We issue a calibration PDF matched to the serial number and order number before the shipment leaves Nanjing.
Every Silver Instruments flow meter ships with a factory calibration certificate. The certificate records test medium, flow points, error limit, and traceability. For hazardous area applications, we include the Ex marking for ATEX Zone 1 or Zone 2. For water and wastewater projects, we include conductivity, pressure, temperature, and liner material details.
We also keep a digital copy. If you lose the paper, we can resend the PDF. This helps customers in Africa and Latin America where inspection happens weeks after arrival. The same document set is useful for distributors who sell to multiple end users.
Recommended Meter Choices by Application
For a desalination plant brine line, use a Silver Instruments magnetic flow meter with a polyurethane liner and platinum electrodes. The water conductivity is usually above 50 µS/cm. Factory calibration covers 0.5 to 5 m/s. Specify your pipe size such as DN80, DN100, or DN150.
For diesel or fuel oil batching, use an oval gear flow meter. We test with diesel at 3 to 5 cP. Send us your flow range in liters per minute. We will match the meter size and include the calibration PDF from the factory.
For compressed air measurement, use a thermal mass flow meter. It gives direct mass flow in Nm3/h or kg/h. The factory certificate lists accuracy at multiple flow rates. No separate pressure or temperature compensation is needed.
For chemical injection or high accuracy mass balance, use a Coriolis mass flow meter. We test mass flow, density, and temperature. Typical accuracy is 0.1 to 0.2 percent of rate. This works for flow from kg/h to tons per hour depending on pipe size.
Frequently Asked Questions About Flow Meter Calibration and Verification
Does Silver Instruments provide an Endress+Hauser calibration PDF? We provide Silver Instruments calibration PDFs, not Endress+Hauser documents. Our format follows the same structure: serial number, test date, flow points, error data, and traceability.
Can I use a factory calibration PDF for onsite verification? Yes. Use it as a baseline. Then run a zero check and compare the live output to the test points in the document.
How often should I verify a flow meter onsite? For clean water, every 12 months is common. For abrasive liquids, high temperature steam, or custody transfer, check every 3 to 6 months.
What data should I send to get a calibration document? Send the fluid type, viscosity in cP or conductivity in µS/cm, pressure in bar, temperature in °C, pipe size in DN, and flow range in kg/h or m3/h. Also tell us the hazardous area requirement if any.
Does Silver Instruments ship to my country? We serve Southeast Asia, Oceania, Latin America, Africa, and the Middle East. Typical customers are industrial end users and distributors with 10 to 100 staff. We ship from Nanjing, China.
Contact Silver Automation Instruments: Tel: +86-135-1213-1526 | WhatsApp: 86-135-12131526 | WeChat: +86 13512131526 | Website: flow-meter.com.au
Send us your pressure in bar, temperature in °C, pipe size in DN, and flow range in kg/h or m3/h. We will select the correct flow meter and include the calibration PDF you need.
