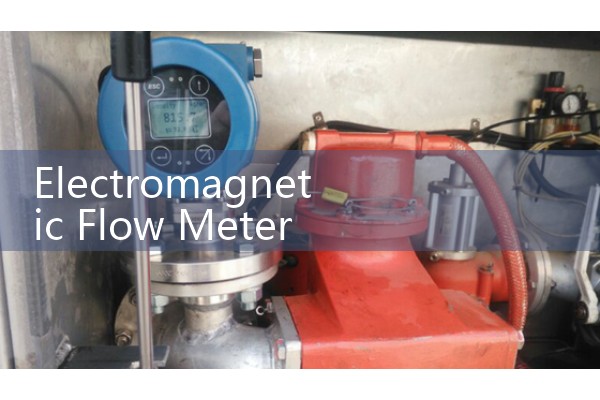

Electromagnetic Flow Meter Installation Guidelines to Prevent Signal Noise
Quick Answer: Electromagnetic flow meter signal noise is usually caused by poor grounding, stray currents, or air in the pipe. Ground the meter body with a dedicated earth wire, keep signal cables away from power cables, and install the meter in a full pipe with a 10D upstream straight run. These steps remove most noise problems in water, wastewater, and chemical lines.
Where Signal Noise Comes From
Most electromagnetic flow meters use a low level voltage signal. The signal is often only a few millivolts at low flow. VFD drives, motors, and welding sets can inject common mode noise into the signal path. We have seen this on customer sites many times in Southeast Asia and the Middle East.
A water treatment plant in Malaysia had unstable readings because a VFD cable ran parallel to the signal cable for 20 meters. The fix was simple. We rerouted the signal cable to a separate conduit. The reading settled within one day.
Grounding Rules That Solve Most Problems
Poor grounding is the number one source of mag meter noise. The meter body must connect to earth with a copper wire. Use a 4 mm² wire at minimum. For metal pipes, ground the sensor to the pipe flange. For plastic pipes or internally lined pipes, you need grounding rings or grounding electrodes.
Silver Instruments electromagnetic flow meters from DN15 to DN300 include optional grounding rings. A desalination plant in Saudi Arabia used titanium grounding rings for seawater service. The measurement stability improved after the plant replaced a standard 316L ring with a titanium ring.
In practice, many engineers skip this part. They connect the pipe to earth and assume the meter is grounded. But a gasket or the liner can break the electrical path. Check the ground resistance. It should be below 10 ohm. If it is higher, add a grounding ring.
Cable Routing and Shielding
Signal cables must use shielded twisted pair cable. Run the signal cable in a separate steel conduit. Do not run it in the same tray as power cables. VFD output cables are especially noisy. Keep a distance of at least 300 mm between signal and power cables. If the cables must cross, cross them at a right angle.
Connect the shield at the transmitter end only. Leave the other end of the shield floating. This avoids ground loops. We saw a food plant in Australia where the shield was connected at both ends. The flow signal jumped up and down every time a mixer started. Lifting one shield end fixed the problem.
Pipe Position and Straight Run
The flow meter must stay full of liquid at all times. Do not mount the meter at the high point of a line. Air collects there. A low point is better if the pipe is always full. For horizontal pipes, install the meter with the electrodes in the horizontal plane. This prevents air bubbles or sludge from coating the electrodes.
Straight pipe upstream should be at least 10D. Downstream straight run should be 5D. A chemical plant in Chile installed a DN50 mag meter 3 pipe diameters after a control valve. The flow signal was noisy. Moving the meter to 10D downstream solved it without any other change.
Process Conditions That Cause Noise
Air bubbles, high solids content, and low conductivity fluids can make the signal unstable. For water with conductivity below 5 µS/cm, the mag meter may not read correctly. Use a magnetic flo
Slurries and pulps can create electrode noise. Use abrasion resistant liners and clean electrodes. A paint manufacturer in Vietnam had unstable readings because the meter was installed on a partially filled vertical line. The batch controller sent the wrong amount of solvent. After the line was rerouted to keep the meter full, the noise stopped.
How to Check a Noisy Installation On Site
Start with grounding. Measure the earth resistance between the meter body and the plant earth. It should be under 10 ohm. Next inspect the cable routing. Separate any power cable near the signal cable.
Check for air in the pipe. Open a downstream vent to see if air escapes. If the reading fluctuates at constant flow, look for a nearby VFD or motor. Turn off the suspect equipment for a short test. This simple step isolates many interference sources.
We often ask customers to send us a short video of the flow reading and a photo of the installation. Our engineers can spot grounding or cable issues from the photos. Send the pipe size, fluid conductivity, and flow range to our technical team.
Recommended Silver Instruments Electromagnetic Flow Meters
Silver Automation Instruments supplies electromagnetic flow meters for line sizes from DN10 up to DN2000. The SFE series is a standard choice for clean water, wastewater, and chemical dosing. It provides a 4-20 mA HART output as standard. Modbus RS485 is optional. For seawater applications, the SFE seawater model uses titanium electrodes, polyurethane liner, and optional grounding electrodes.
For chemical injection skids, a DN15 or DN20 SFE model with PTFE liner and platinum electrodes works well. These small meters are common in Southeast Asian water treatment plants. For a quick quote, send your pipe size (DN), flow range, fluid conductivity (µS/cm), pressure (bar), and temperature (°C).
You can reach us at Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. Our technical sales team works with customers in Australia, Latin America, the Middle East, and Africa.
FAQ: Electromagnetic Flow Meter Signal Noise
What is the minimum upstream straight pipe to prevent mag meter noise? Use at least 10D of straight upstream pipe. Downstream use 5D. More straight run is better after pumps, valves, or elbows.
Why does the reading fluctuate when the pipe is full? The most common causes are poor grounding, air bubbles, or electrical interference from a nearby VFD cable. Check the ground resistance first. Then check cable routing and vent air from the line.
Can I install an electromagnetic flow meter near a VFD cable tray? You can, but only if you separate the signal cable from the VFD power cables by at least 300 mm. Use a separate steel conduit. Do not run both in the same tray.
What grounding method is best for plastic or lined pipes? Use grounding rings or grounding electrodes. A standard earth connection to the pipe flange will not work because the liner or plastic pipe breaks the electrical path.
Does air in the process line cause signal noise in mag meters? Yes. Air bubbles passing the electrodes change the conductivity path. The transmitter sees a noisy signal. Keep the meter full and avoid high point mounting.
