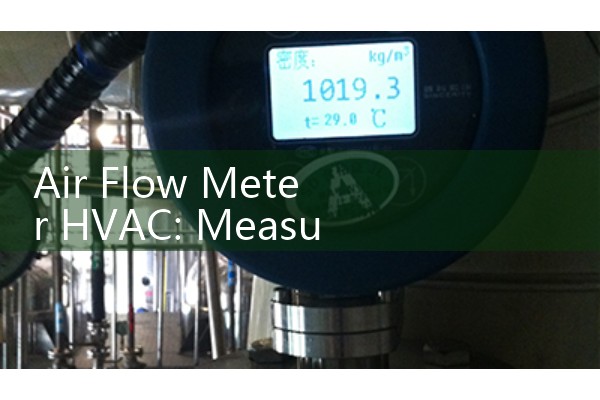

Air Flow Meter HVAC: Measuring Building Airflow for Regulatory Compliance
Quick Answer
Building codes like ASHRAE 62.1 and local mechanical ventilation standards demand verifiable outdoor air delivery and exhaust rates. A thermal mass flow meter inserted directly into an HVAC duct gives you 4-20 mA HART or Modbus readings of mass airflow in kg/h or Nm³/h. This hard data keeps facility managers ahead of audits without manual pitot traverse hours.
Silver Automation Instruments supplies insertion and inline thermal mass flow meters for air and flue gas. Most orders from ventilation contractors in the Middle East and Southeast Asia ship with a NIST traceable calibration certificate and pre-configured 0 to 10 V or pulse output. You get a meter that reports actual mass flow, not a velocity number you still need to convert.
Why HVAC Airflow Measurement Matters for Compliance
Green building certifications and local health regulations now require continuous recording of fresh air intake. In Singapore, BCA Green Mark audits check if air handling units deliver the design outdoor air volume. In Australia, NCC Volume One references AS 1668.2 for ventilation rates. A portable capture hood or a spot check with an anemometer cannot satisfy annual reporting. You need a fixed meter in the duct that logs data to a BMS or a paperless recorder.
Silver Instruments works with HVAC commissioning teams who retrofit meters into existing ductwork. A job we supplied to a hospital in Jakarta involved ten insertion thermal mass probes on 600 mm × 900 mm rectangular ducts. The probes communicated via RS485 Modbus to a central BAS. The facility now proves compliance every quarter with exportable CSV logs.
How a Thermal Mass Flow Meter Works in a Ventilation Duct
The sensor uses two platinum RTD elements. One measures process temperature. The other self-heats to a constant temperature delta above the gas. Flowing air cools the heated sensor. The circuit measures the power needed to maintain the delta and converts it to a mass flow signal. Because the measurement is direct mass flow, you do not need separate pressure and temperature compensation. This matters when your duct pressure varies between 100 Pa and 800 Pa.
Most engineers skip the pitot calculation step once they see a direct mass flow readout on the local display. The meter shows kg/h, Nm³/h, or SCFM. You also get totalized flow for energy accounting. In practice, a ventilation engineer in a Philippine semiconductor plant told us the thermal meter saved two hours of weekly field checks and eliminated paper log sheets.
Silver Instruments Solution for Building Air Monitoring
Our SIT-200 insertion thermal mass flow meter covers duct sizes from DN100 to DN2000. The standard probe is 316L stainless steel with a PTFE insulated cable gland. Electronics are housed in an IP67 aluminum enclosure. Output choices include 4-20 mA HART, RS485 Modbus RTU, and two relay alarms. Accuracy is ±1.5 percent of reading plus 0.5 percent of full scale, with a repeatability of 0.25 percent.
The meter works with air temperatures from -20 °C to 120 °C and duct pressures up to 1.6 MPa. ATEX Zone 2 and IECEx zone 2 versions ship for projects with flammable dusts or gas risk, for instance a paint booth exhaust monitoring job we did for a coach builder in Thailand. Every meter leaves our Nanjing calibration bench with a certificate traceable t
Practical Points When Installing an Insertion Meter in Your Duct
Pick a straight run of 10 upstream and 5 downstream diameters if you can. In retrofit jobs the space is usually tighter. We have seen 5D upstream and 3D downstream work with a flow conditioner plate. Cut a DN25 ball valve mounting boss onto the duct wall. The probe inserts through the valve. You can retract it under pressure for cleaning. A chilled water pipe nearby will not hurt the meter, but avoid placing the probe directly behind a cooling coil because condensation and droplets cause a spike in the heat transfer reading.
Connect the meter to a Silver Instruments paperless recorder or your existing DDC controller via the 4-20 mA channel. Set the span in kg/h or Nm³/h based on the duct cross-section and maximum design velocity. A typical range for a 0.8 m² duct is 0 to 10,000 Nm³/h. For outdoor air damper verification, set the low cutoff to 2 percent so you still see the small leakage flows.
Get a Quote: Send Your Duct Details
We ship to HVAC contractors, energy service companies and building consultants in over 35 countries. To receive a priced proposal, send us these four numbers: duct width x height or diameter (DN), design air volume (m³/h or Nm³/h), air temperature range (°C), and static pressure (Pa or bar). Tell us if you need ATEX certification or a Modbus interface. We will return a data sheet, dimensional drawing and budget price within one working day.
Email: [email protected]
Tel: +86-135-1213-1526
WhatsApp: 86-135-12131526
WeChat: +86 13512131526
FAQ on HVAC Airflow Compliance Measurement
Which standard requires permanent airflow monitoring in commercial buildings? ASHRAE 62.1 and the International Mechanical Code require outdoor air monitoring for variable air volume systems where minimum outdoor air damper positions depend on total supply airflow. A thermal mass flow meter satisfies the continuous measurement requirement without manual pitot traverses.
Can I use a differential pressure transmitter across an orifice plate for air measurement? You can, but the accuracy drops sharply at low velocities below 5 m/s. Thermal mass meters resolve flows down to 0.5 m/s and do not need a primary element, which eliminates pressure drop and accumulation of dust in the pressure taps.
Does the Silver Instruments meter work in rectangular ducts with turbulence? Yes. We calibrate probes individually under service conditions. If the duct has a sharp elbow or an iris damper close to the measurement point, we recommend an insertion probe with a flow conditioner. A facility in Qatar installed this arrangement on a 1500 mm x 800 mm return air duct and achieved ±2 percent total error.
How often does the meter need recalibration? We advise a 24-month interval for clean air applications. For dusty or humid air streams, field-zero checks every six months keep the drift minimal. The meter firmware allows a field zero adjustment with the duct sealed.
What output does the building management system need? Almost all BMS controllers accept 4-20 mA analog signals. Our meter also outputs Modbus RTU, which reads mass flow, temperature and totalized flow on a single register map. Pulse outputs work for energy or carbon accounting counters commonly available in DDC panels.
